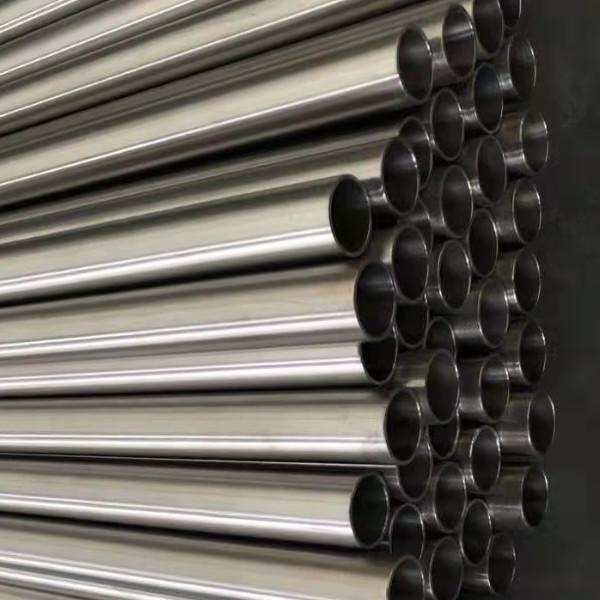

ASTM B622 ASME SB622 Alloy C276 C22 B2 Nickel Alloy Seamless Tube For Petrochemical MT23

Brand Name : DLX

Model Number : Hot Selling Nickel Based alloy Bright Soft Hastelloy B-3 Alloy Wire

Place of Origin : China Jiangsu

MOQ : 5

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 500 tons per month

Delivery Time : 5-20 Days

Packaging Details : Hastelloy X packed in spool,in coil then in carton,in woodencase

Material : Ni Cr Fe Mo

Elongation : 30 %

Brinell hardness HB : ≤220

Density : 8.22 g/cm3

Tensile strength Rm N/mm² : 760MPA

Yieldstrength R P0. 2 N/mm² : 345MPA

Electrical Resistivity（24℃）） : 1180 µΩ·m

Thermal Conductivity（32℃） : 9.1 W/m·K

Melting Range : 260-1355°C

Specific Heat : 486 J/kg·K

Standard : Rod: ASTM B572

Certification : CE,ROHS

Contact Now

ASTM B622 ASME SB622 Alloy C276 C22 B2 Nickel Alloy Seamless Tube For Petrochemical MT23

Alloy C-276 has excellent resistance to localized corrosion, stress corrosion cracking, and to both oxidizing and reducing media, thus making it suitable for a wide variety of chemical process environments, including ferric and cupric chlorides, hot contaminated media (organic and inorganic), formic and acetic acids, seawater and brine solutions.

It is one of the few materials that withstands the corrosive effects of wet chlorine gas, hypochlorite and chlorine dioxide.

Scope of application

It has been widely used in chemical and petrochemical fields, such as components and catalytic systems in contact with organics containing chlorides.

This material is especially suitable for high temperature, mixed with impurities of inorganic and organic acids (such as formic acid and acetic acid), sea water corrosion environment use.

Other application fields

● Pulp and paper industries, such as decolorization and bleaching vessels ● Scrubber tower, reheater, wet steam fan in FGD system ● Equipment and components operating in acidic gas environment ● Acetic acid and acid products reactor ● Sulfuric acid condenser ● Methylenediphenyl isocyanate (MDI) Production and processing of impurity phosphoric acid

Corrosion resistance

C276 alloys are used in a variety of chemical process industries containing oxidizing and reducing media.

The high content of molybdenum and chromium makes the alloy resistant to the corrosion of chloride ion, and the tungsten element further improves the corrosion resistance.

One of the few materials in C276 that is resistant to wet chlorine, hypochlorite and chlorine dioxide solutions, the alloy has significant corrosion resistance to high concentrations of chloride solutions (e.g. ferric chloride and copper chloride).

Chemical Composition Requirements of Hastelloy X

The Chemical Composition of Hastelloy X, %
Ni	balance
Cr	20.5-23.0
Fe	17.0-20.0
Mo	8.0-10.0
Co	0.5-2.5
W	0.20-1.00
C	0.05-0.15
Mn	≤1.00
Si	≤1.00
P	≤0.040
S	≤0.030

Typical Physical Properties

Density	Melting Range	Specific Heat	Thermal Conductivity	Electrical Resistivity
g/cm³	°C	J/kg.k	W/m.k	µΩ·m
8.22	1260-1355	486	9.1	1180

Product Forms and Standards

Product Form	Standard
Rod	ASTM B572
Plate, sheet and strip	ASTM B435, B906
Seamless pipe and tube	ASTM B622
Welded pipe	ASTM B619, B775
Welded tube	ASTM B626, B751
Welding fitting	ASTM B366
Billet and bar for reforging	ASTM B472
