Pure nickel strips, specifically P1 and P2 types, are widely used in battery manufacturing, particularly for new energy applications like lithium-ion battery packs in electric vehicles, energy storage systems, and high-power devices. Key Features of P1 and P2 Pure Nickel Strips.
Material: Typically made from high-purity nickel (99.6% to 99.9% purity, often Ni200 or N6 grade), ensuring low electrical resistance, high conductivity, and excellent corrosion resistance.
Applications: Ideal for spot welding and soldering in battery packs, especially for 18650, 21700, 26650, and 32700 lithium-ion cells. Used in electric vehicles, power tools, renewable energy storage, and DIY battery projects.P1 and P2 Configurations: These refer to nickel strips designed for connecting cells in parallel (P) configurations. For example:
P1: Single-cell connection strip.
P2: Strips for connecting two cells in parallel (e.g., 2P configuration with specific spacing like 20.25mm for 18650 cells).
Dimensions: Common sizes include:
Thickness: 0.1mm, 0.15mm, 0.2mm, or 0.3mm.
Width: 4mm to 27mm, depending on current requirements.
Length: Sold in rolls (e.g., 5m, 10m, or by foot) or pre-cut tabs (e.g., 0.1x8x100mm).
Dimension:
The thickness and dimensions can be met what customers required.
1. Material: pure nickel or nickel steel
2. Width: 2, 3, 4, 5, 6, 7, 8, 10, 15mm or customized width
3. Thickness: hot sale are 0.15mm/0.2mm, or customized thickness
4. Used for 18650, 26650, ,21700,32650, 32700 battery pack
4. Color: silver
5. 18650 nickel strip: 1P, 2P, 3P, 4P, 5P, 6P, 7P, 8P, 9P
26650 nickel strip: 1P, 2P, 3P, 4P, 5P, 6P, 7P, 8P, 9P
32650 nicekl strip: 1P, 2P, 3P, 4P, 5P
Physical properties
1.Spot welding is good
2.The resistance is lower
3. Battery discharge time longer
4. The battery spot welding is stronger.
Functions/Applications
1. manufacturing nickel-cadmium battery
2. nickel-hydrogen battery
3. lithium cell
4. assembled battery
5. industries of electric tool and special lights
6. Superconductor Applications
| Grade | Chemical Composition(%) |
| Ni+Co | Cu | Si | Mn | C | Mg | S | P | Fe |
| N4/201 | 99.9 | ≤0.015 | ≤0.03 | ≤0.002 | ≤0.01 | ≤0.01 | ≤0.001 | ≤0.001 | ≤0.04 |
| N6/200 | 99.5 | 0.1 | 0.1 | 0.05 | 0.1 | 0.1 | 0.005 | 0.002 | 0.1 |
| Material | 18650/21700/26650/32650 nickel strip |
| Dimension | 1P to 9P |
| Available Space | 18.5mm,19mm, 19.5mm, 20.2mm |
| Usage | Use for 18650 battery pack |
| Package | Nickel strip in roll pack into carton |
| Physical properties | High temperature resistant, corrosion resistance, |
| Technical support | With imported stamping machine, Japanese Sodick, complete mold (more than 2000 sets of battery industry hardware mold), and can
open mold independently. |
| Functions | Products are widely used in energy storage battery, new energy vehicles, electric bicycles, solar street lights, power tools and
other energy products |
| Advantage | All materials are degreased and adopt the dry -punching technology to ensure that the product is clean |
Size range
Wire: 0.025 to 8.0 mm.
Strip:0.05-1mm * 5-240mm
The thickness and dimensions can be met what customers required.
Physical properties
1.Spot welding of pure nickel is good
2.The resistance of pure nickel is lower
3. Battery discharge time of pure nickel strip longer
4. The battery spot welding is stronger.
Pure nickel Functions/Applications
1. manufacturing nickel-cadmium battery
2. nickel-hydrogen battery
3. lithium cell
4. assembled battery
5. industries of electric tool and special lights
6. Superconductor Applications
Product Tags:
|
|

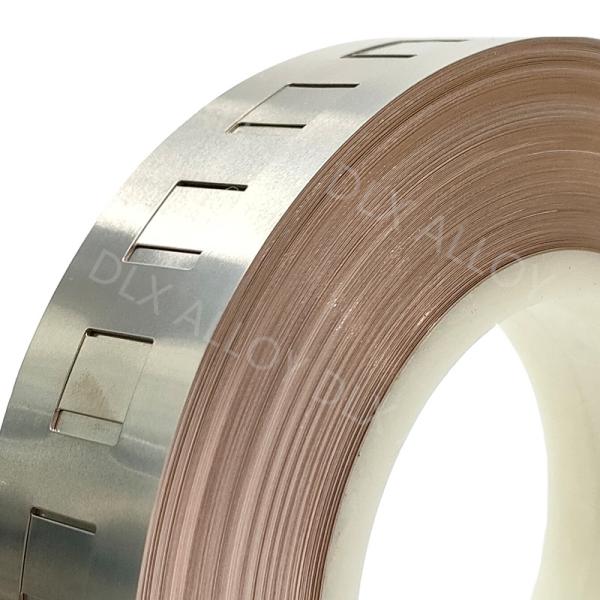

P1 P2 pure nickel strip for battery, nickel strip for new energy battery Images
|
